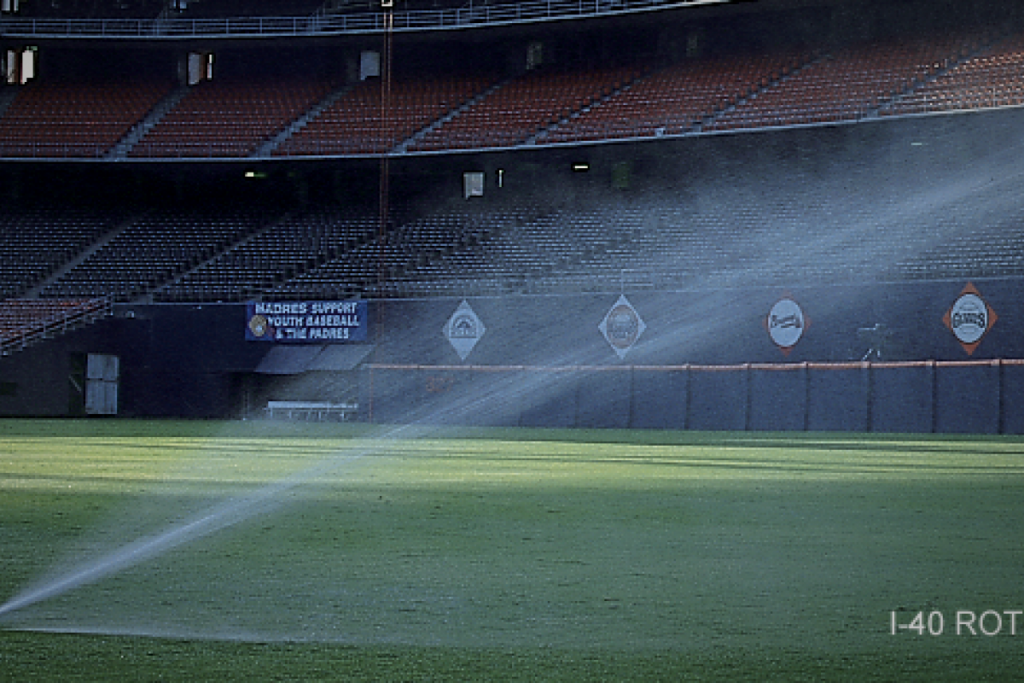

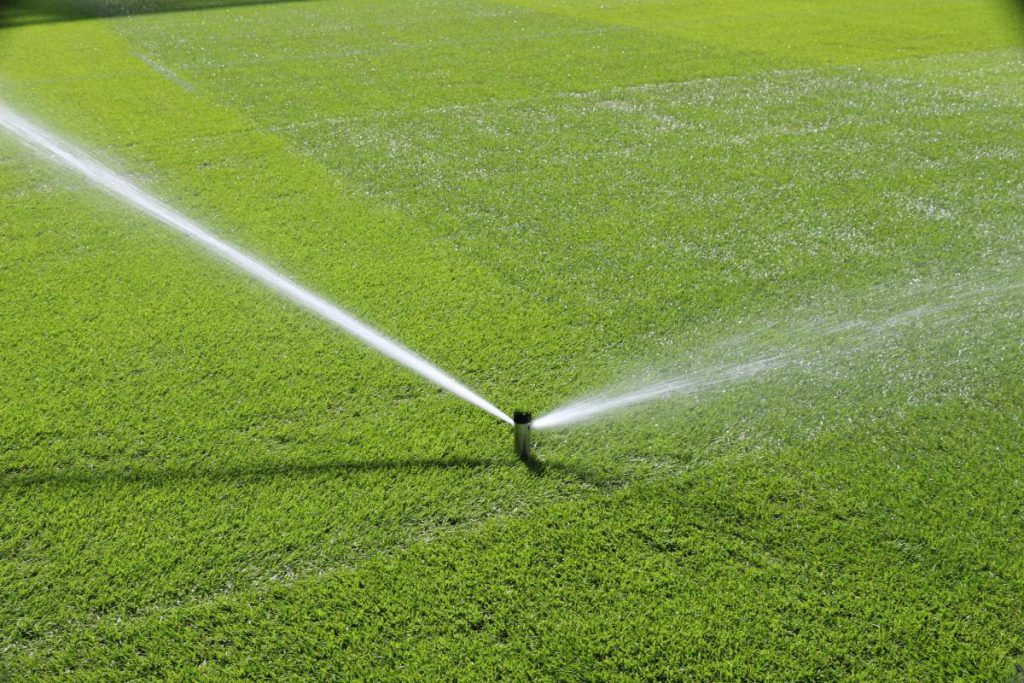

OpisThe I-40 rotary sprinkler provides professional results in irrigation of sports grounds and parks.

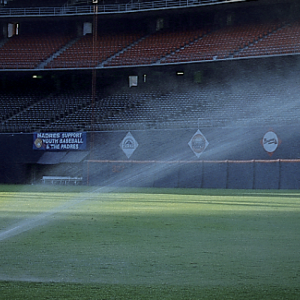

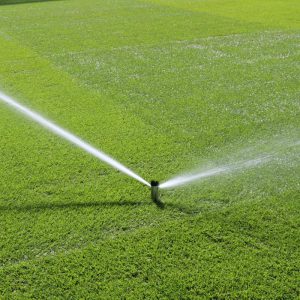

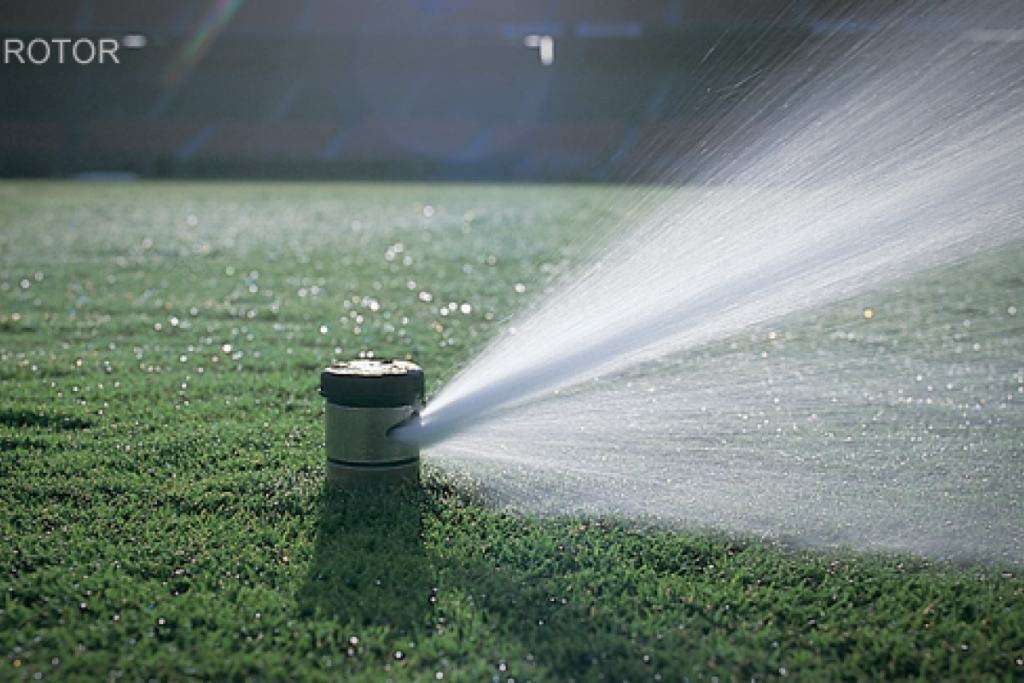

I-40 is a durable rotor that distributes water evenly and efficiently in a radius of up to 23.2 m. The properties of the I-40 rotor include three-nozzles with outlets, durable drive and a thick, rubber protective cap. It is not surprising then that the I-40 rotor can be found in stadiums more often than any other model. Thanks to the stainless steel construction, the I-40 is able to withstand even the most difficult working conditions at sports facilities, parks and commercial areas. In terms of efficiency, effective irrigation and great results, the I-40 rotor is the best professional solution on the market.

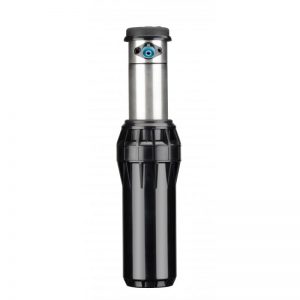

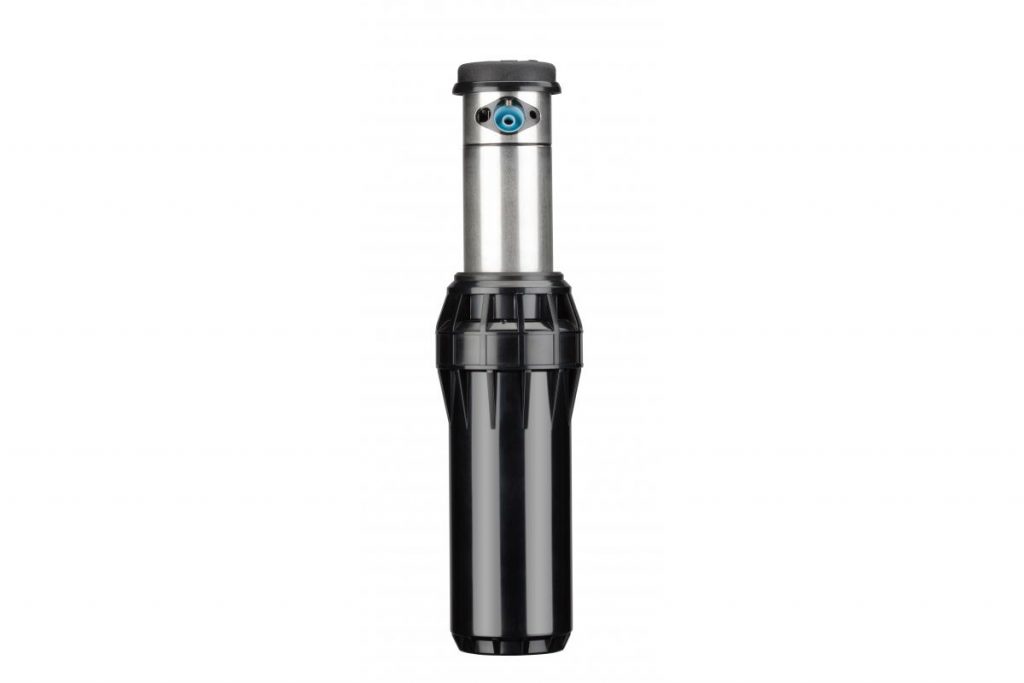

Model with stainless steel piston: 10cm, 15cm
Range setting: 50-360

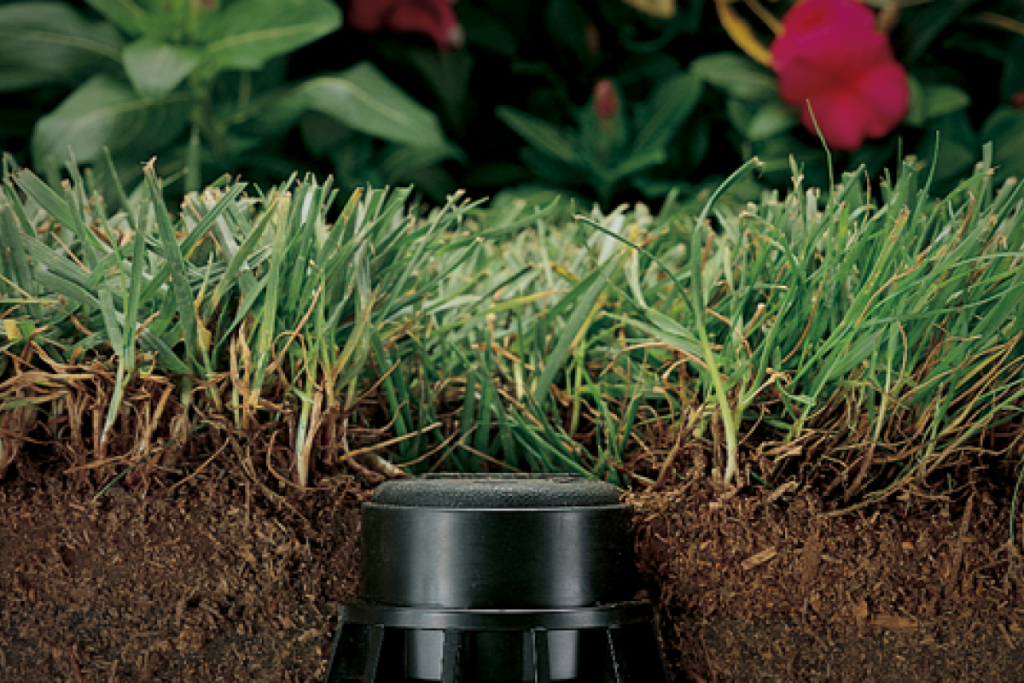

Factory fitted rubber cover

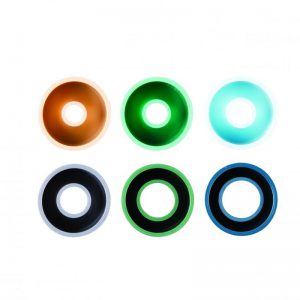

Nozzles to choose from: 12

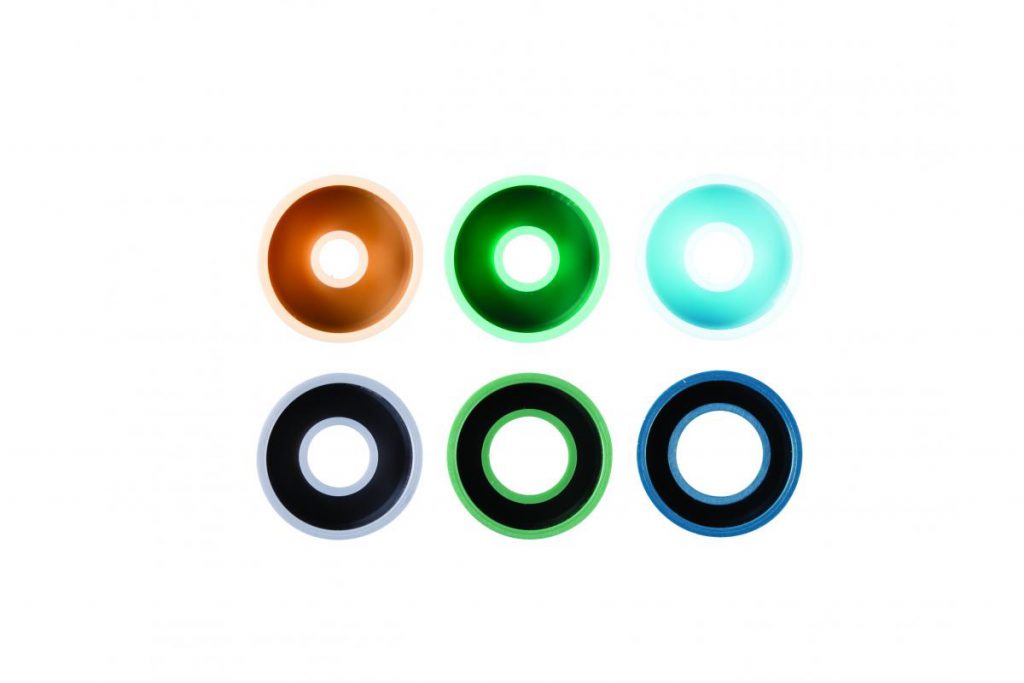

Nozzle range I-40: from No. 8 to No. 25

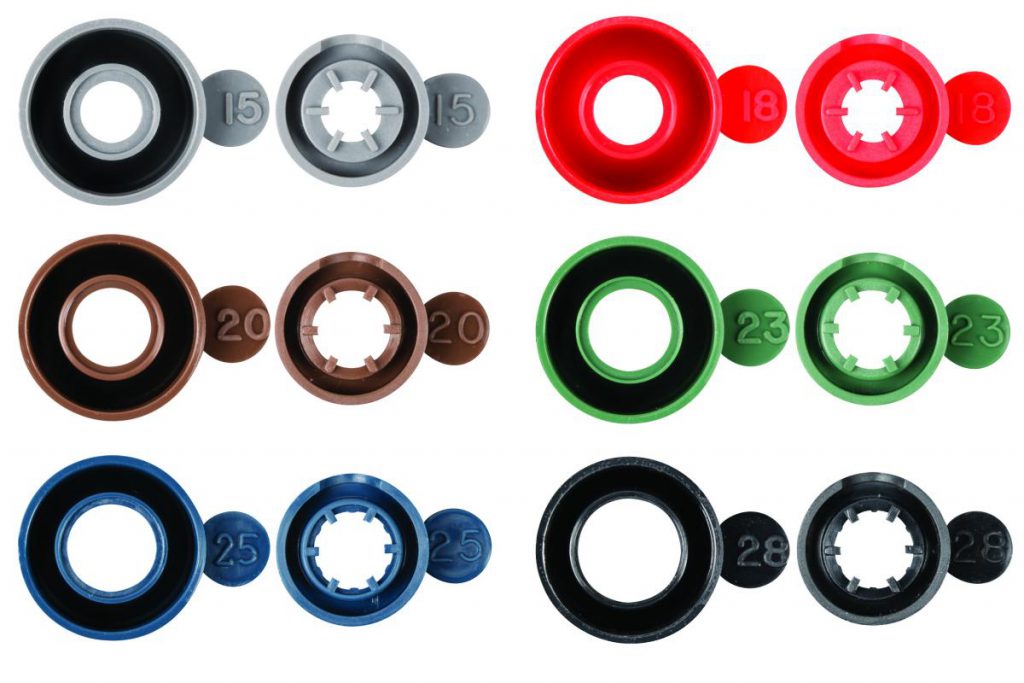

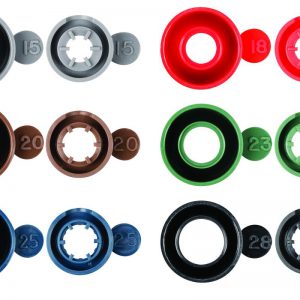

Nozzle range I-40-ON: from 15 to 28
Top adjustment of the nozzle range
Quick range adjustment mechanism
Warranty period: 5 years
Drive lubricated with water
Models
I-40-04: Height: 20 cm, Ascent part: 10 cm, Piston diameter: 5 cm, Connection: 1 “BSP
I-40-06: Height: 26 cm, Ascent part: 15 cm, Piston diameter: 5 cm, Connection: 1 “BSP
Usage data
I-40 radius: from 13.1 to 21.3 m
I-40-ON radius: from 15.2 to 23.2 m
Flow: I-40: from 1.63 to 6.84 m3 / h; from 27.2 to 114.1 l / min
Flow: I-40-ON: from 2.75 to 7.76 m3 / h; from 45.8 to 129.4 l / min
Recommended pressure range: 2.5 to 7 bar; from 250 to 700 kPa
Working pressure range: from 2.5 to 7.0 bar; from 250 to 700 kPa
