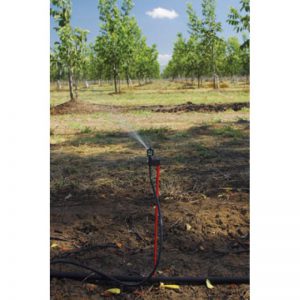

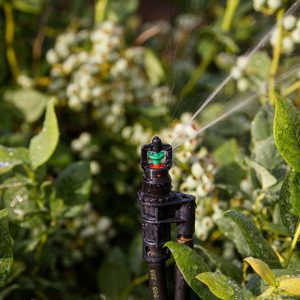

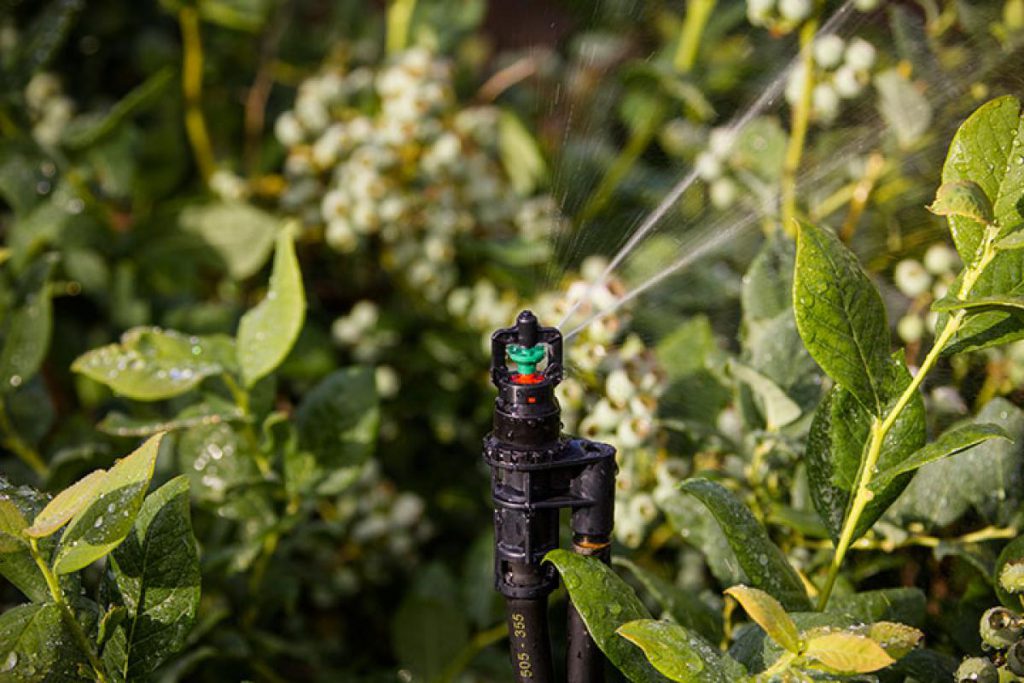

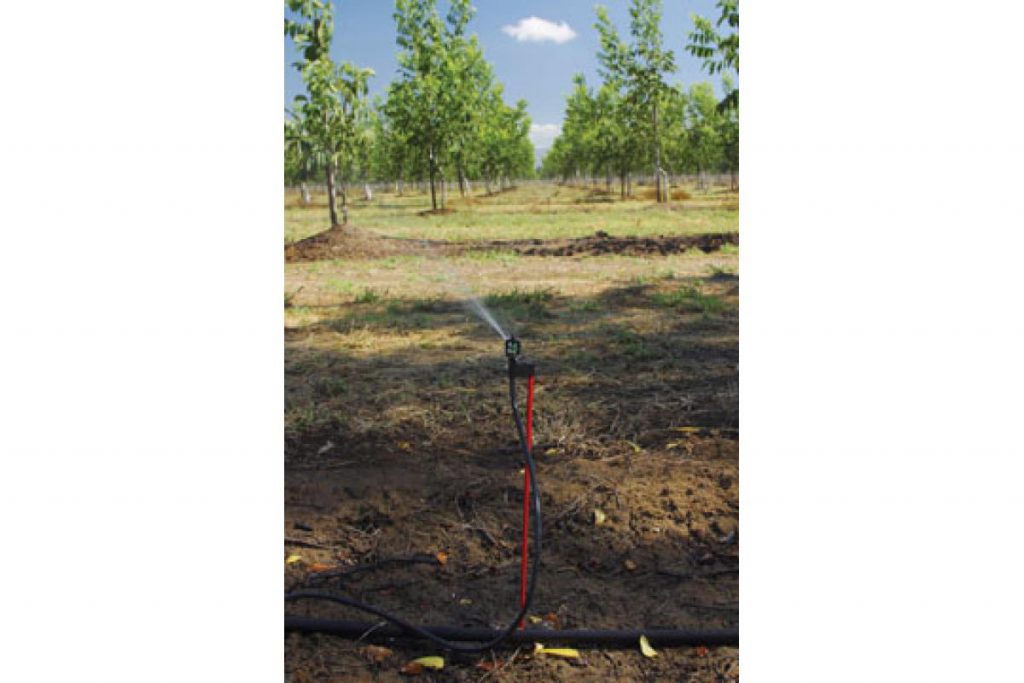

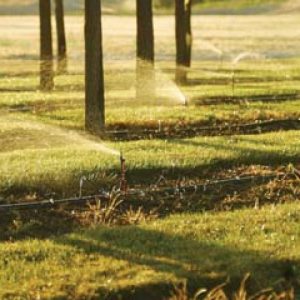

Rotary Micro-sprinkler R5 by Nelson
Advantages of the R5 sprinkler:
- uniform coverage of the irrigated surface with water
- better radius
- better infiltration of soil
- low operating pressure
Technical Specifications:
- sprinkler radius from 3.3 m to 5.2 m
- capacity from 50 to 75 l / h
Nelson agricultural sprinklers
In the ’80s of the previous century, Nelson decided to completely change the construction and project of hammer sprinklers, as a result of which a completely new drive mechanism was created. This is how the Rotator? sprinkler family was created. The durable plastic construction facilitates the use of the water propulsion method by reducing moving parts to only one.
How Rotator? sprinklers work

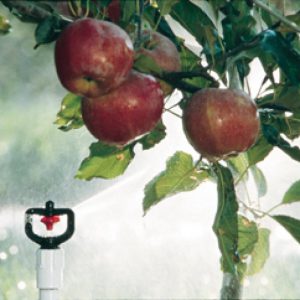

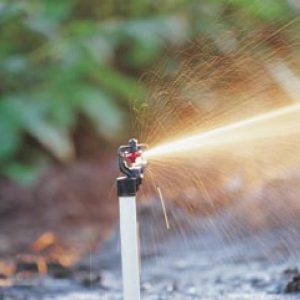

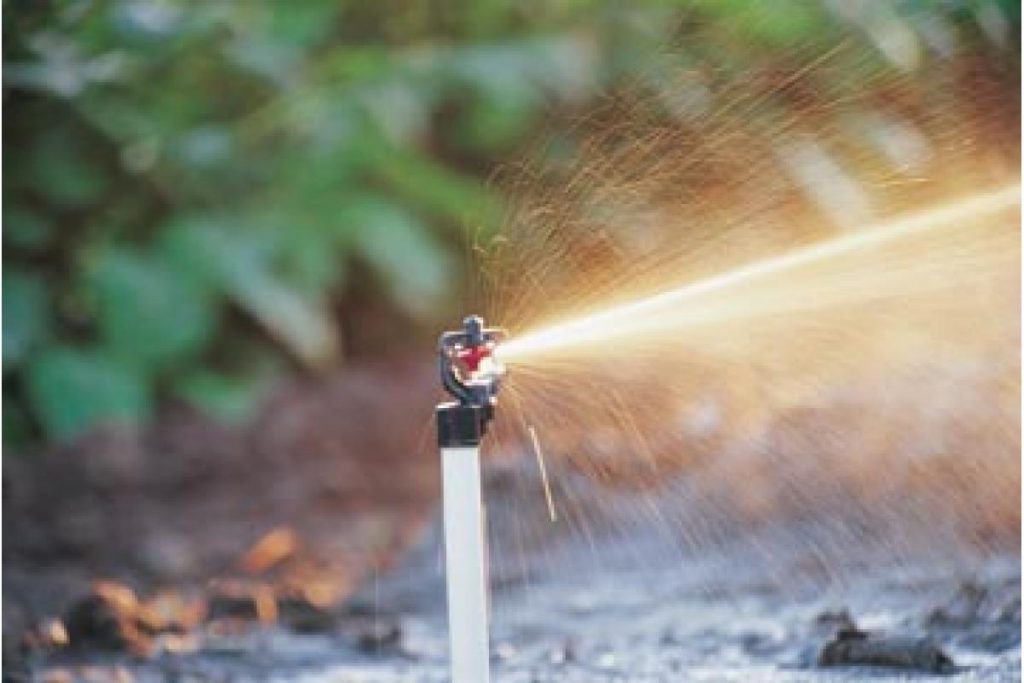

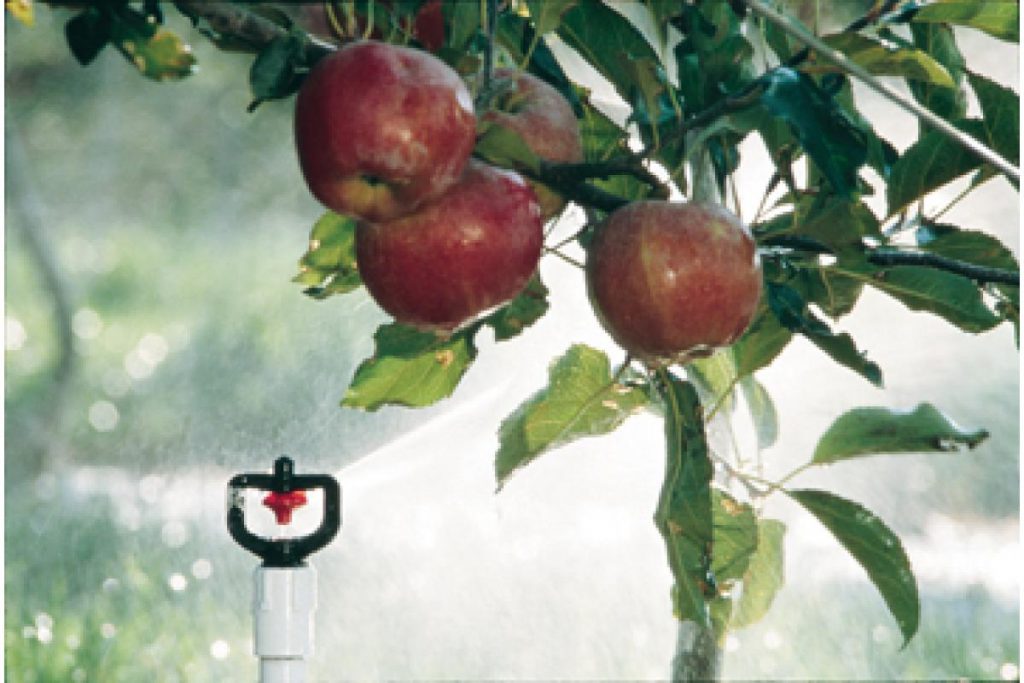

The stream of water coming out of the nozzle is directed to the channel in the plate, which is the driving force of the sprinkler. The silicone bearing inside the sprinkler controls the rotation speed. The precise and simple project solves many of the problems hammer sprinklers had to deal with. The use of Rotator? sprinklers enables more uniform water distribution. Sprinkler’s work is more reliable, water doses are reduced, costs and plant maintenance are minimized, and rack vibration is eliminated thanks to the revolutionary sprinkler’s technology. Since the introduction of Rotator? technology, a complete sprinkler line has been created: R5, R10, R10Turbo, R2000 and R2000WF.
