Sports such as football, golf and tennis require a manicured and resistant surface. Irrigation of sports facilities allows you to keep the surface in good condition. Automatic irrigation systems ensure precise water dosing according to the needs of the turf. Due to the specific nature of the terrain slopes and elevations, golf courses require an individual approach to each project and the use of special devices and valves. We present products designed to create functional lawn irrigation systems in sports facilities and golf courses. We offer high-quality sprinklers that will guarantee the correct stream of water with the right power and range. Automating the irrigation process will allow you to set the appropriate watering times. As a result, it is possible to create an installation ideally suited to climatic conditions and terrain. Among the offered products, we offer, among others, special Hunter sprinklers for golf courses, as well as turbine models for sports facilities. We also have special solenoid valves for these products.

Choose an application

Sterownik I-CORE Hunter idealny dla obszarów komercyjnych oraz posesji prywatnych o zróżnicowanym ukształtowaniu terenu

Hunter I-CORE Controller – available in both outdoor and indoor models, for commercial applications

Description

New generation control

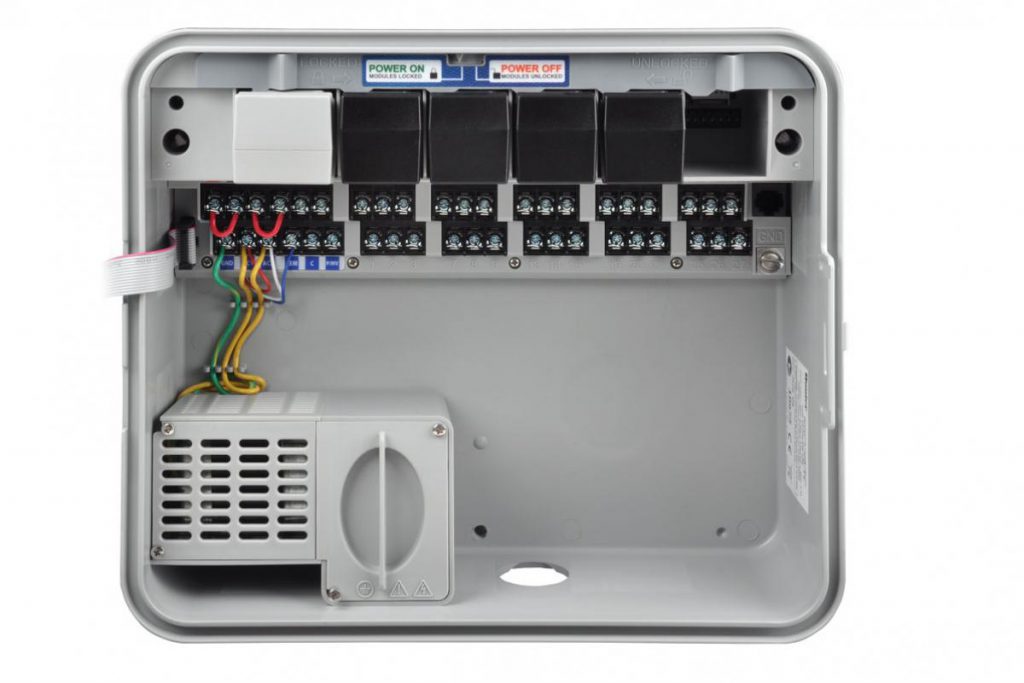

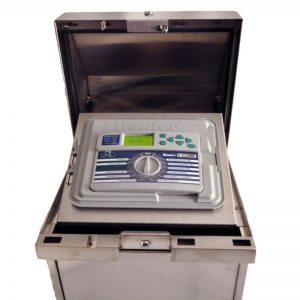

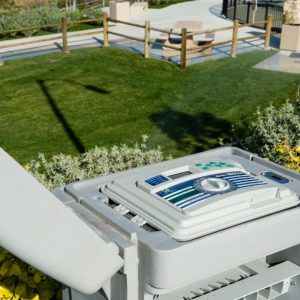

The Hunter I-CORE controller is designed for commercial areas and private properties with varying terrain. The device offers many innovative features such as modern flow monitoring, quick access to system data, factory installed SmartPort® connector, menu language selection from among six available and a large display. The I-Core controller is ideal for advanced irrigation schedules. The versatile use of the controller makes it a unique device on the market. The version with plastic housing can be expanded from 6 to 30 sections, while the version with metal housing can be expanded to 42 sections. Thanks to installing a two-wire DUAL® module, the number of sections available can be increased to 48. Also available are stainless steel models and models with a pedestal, thanks to which the selection offer is really wide. In addition, other additions such as the ROAM or ROAM XL remote control and the built-in Solar-Sync sensor make the possibilities of the I-Core controller almost limitless

  • Number of sections: from 6 to 42 (48 sections with DUAL decoding chip)
  • Type: Modular
  • Housing: Plastic for outdoor use and metal
  • Independent programs: 4
  • Number of program starts: 8 (A, B, C); 16 (D)
  • Maximum section working time: 12 hours
  • Warranty period: 5 years



Technical data:

  • Transformer external power supply: 120/240 V, 50/60 Hz
  • Transformer output power (24 V): 1.4 A
  • A two-voltage transformer (120/240 V)
  • Section output power (24 V): 0.56 A
  • Pump / main valve output (24 VAC): 0.28 A
  • Simultaneous operation of several sections: 5 valves
  • Pump / main valve
  • Sensor inputs: plastic housing 2; metal housing: 3
  • Working temperature: -18º C to 60º C



Models:

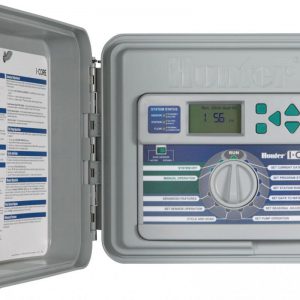

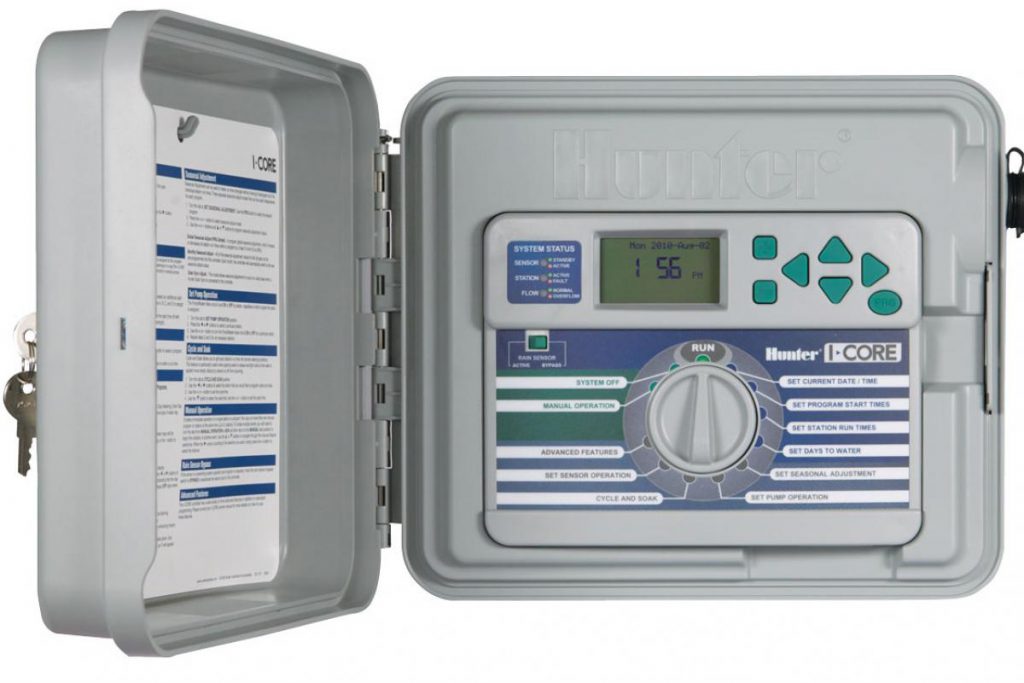

  • IC-601-PL: International version, 6-section controller, internal / external, plastic housing
  • IC-600-M: 6-section controller, internal / external, metal housing

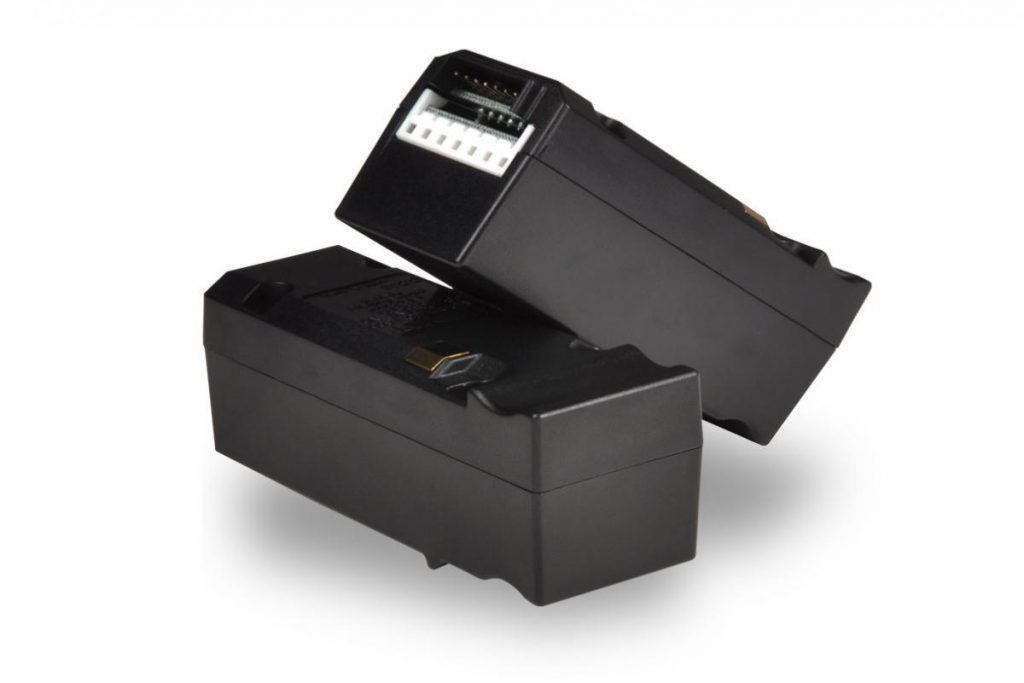

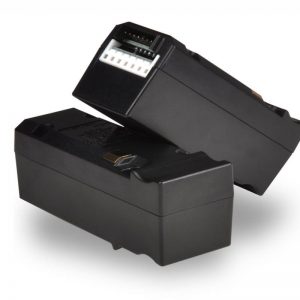

I-CORE extension module



Expansion module – after-bridge module

I-Core activates when connected to terminal blocks

Certificates

  • CE, UL, cUL, C-tick, FCC
  • Housing:

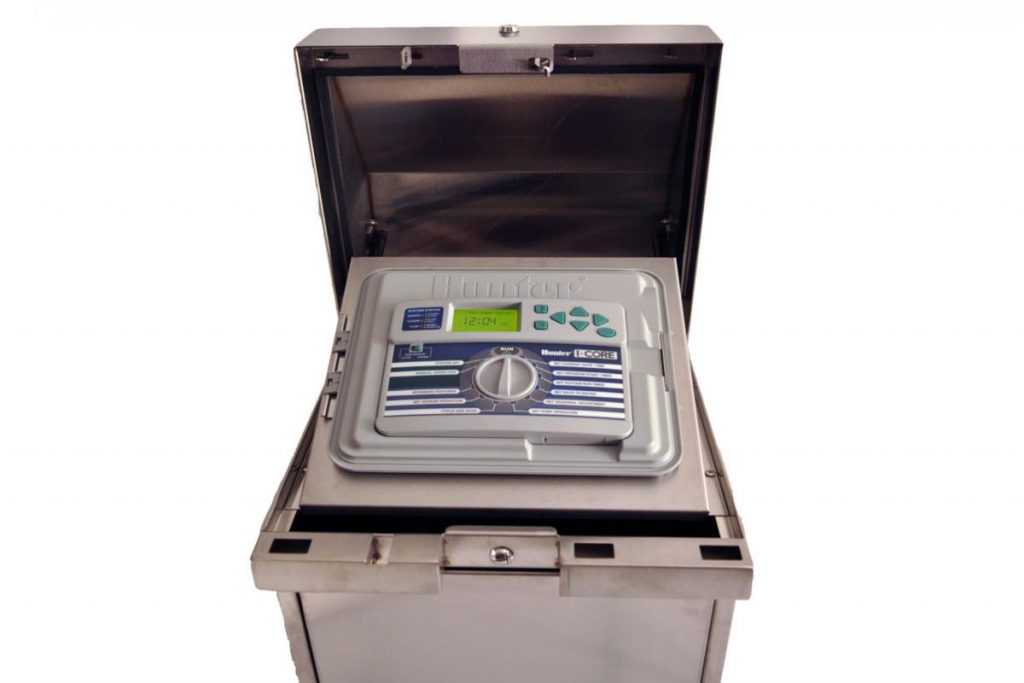

  • Steel for wall mounting: IP-56

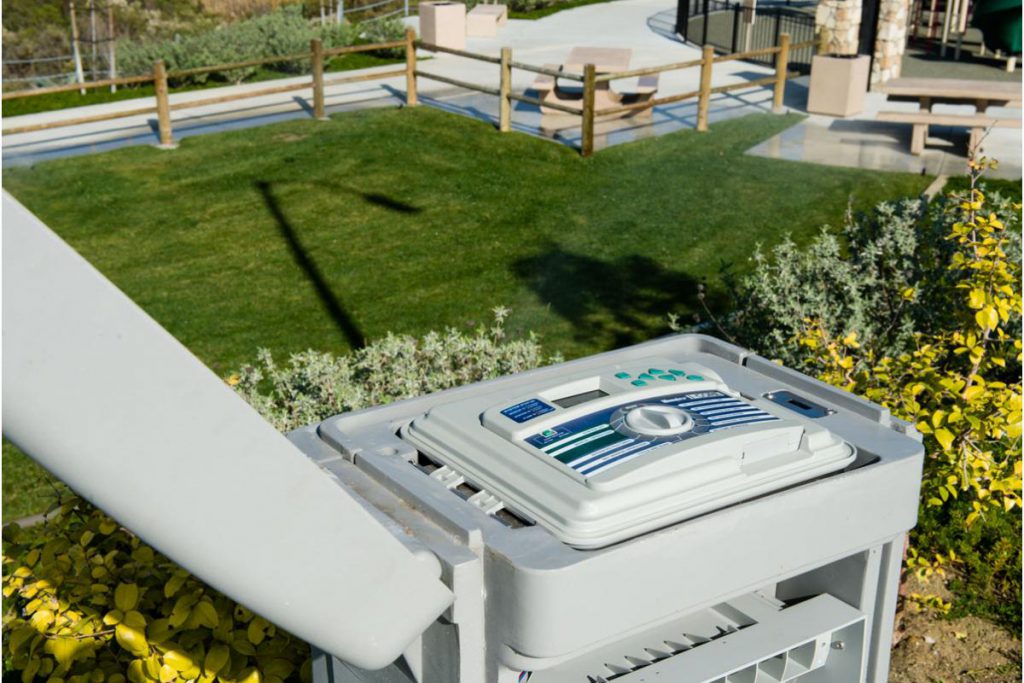

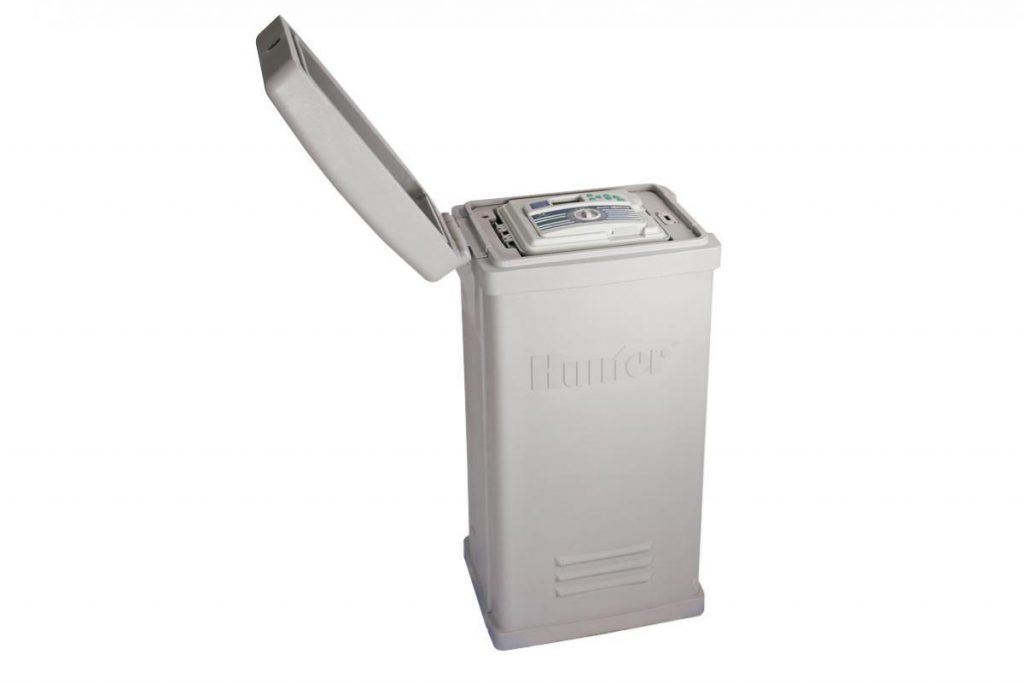

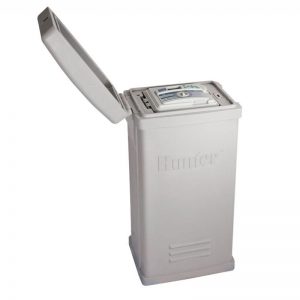

  • Plastic pedestal: IP-24
  • Plastic for wall mounting: IP-4

More information: https://www.hunterindustries.com/en-metric/irrigation-product/controllers/i-coretm
